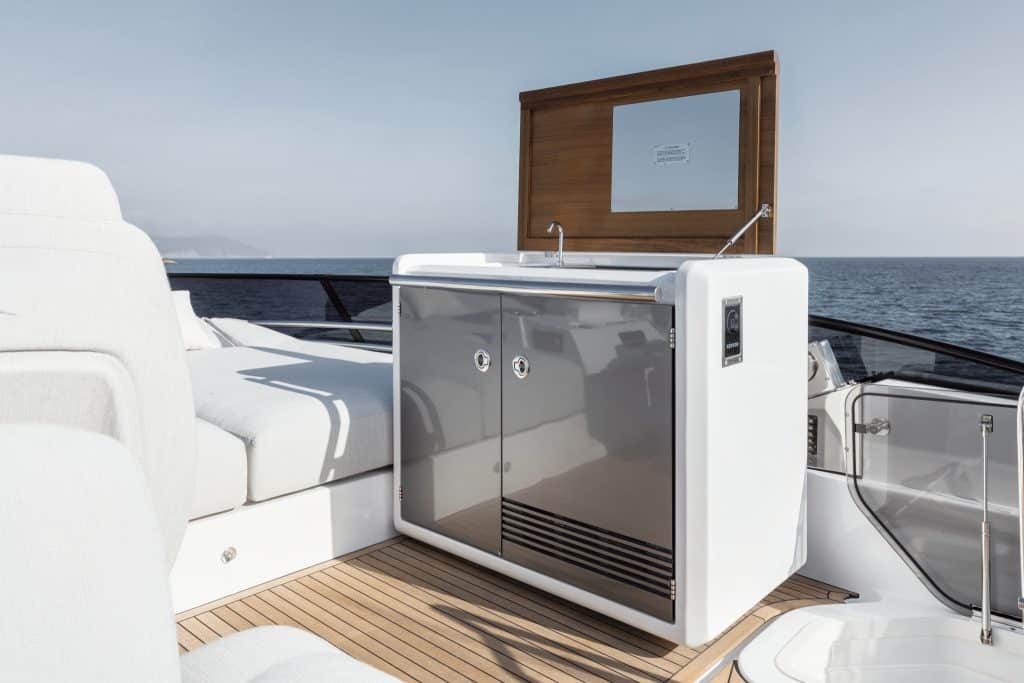

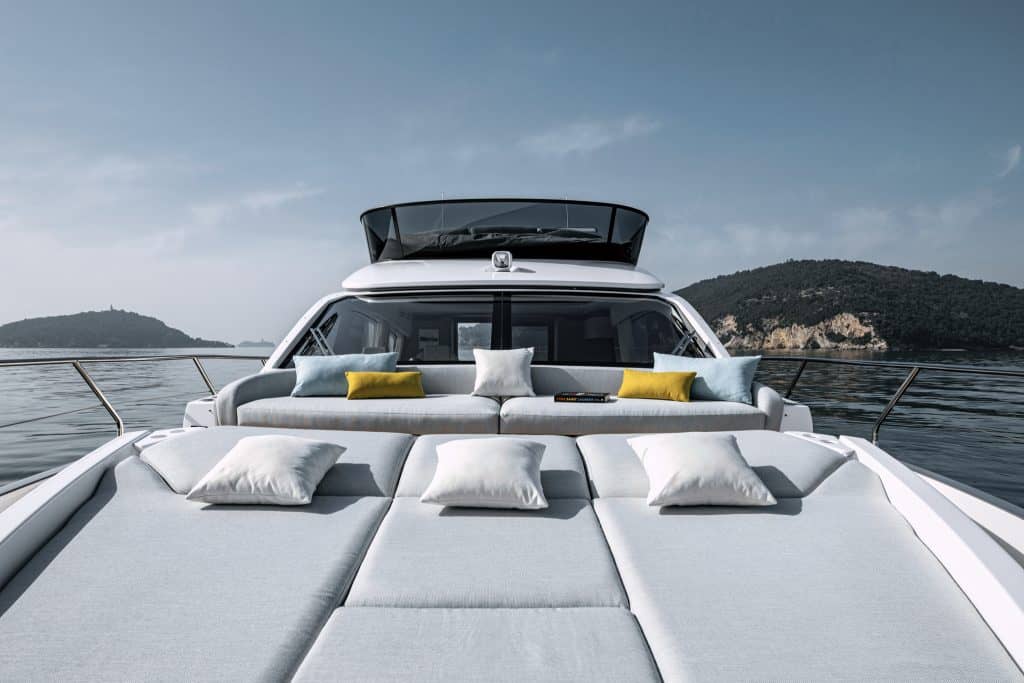

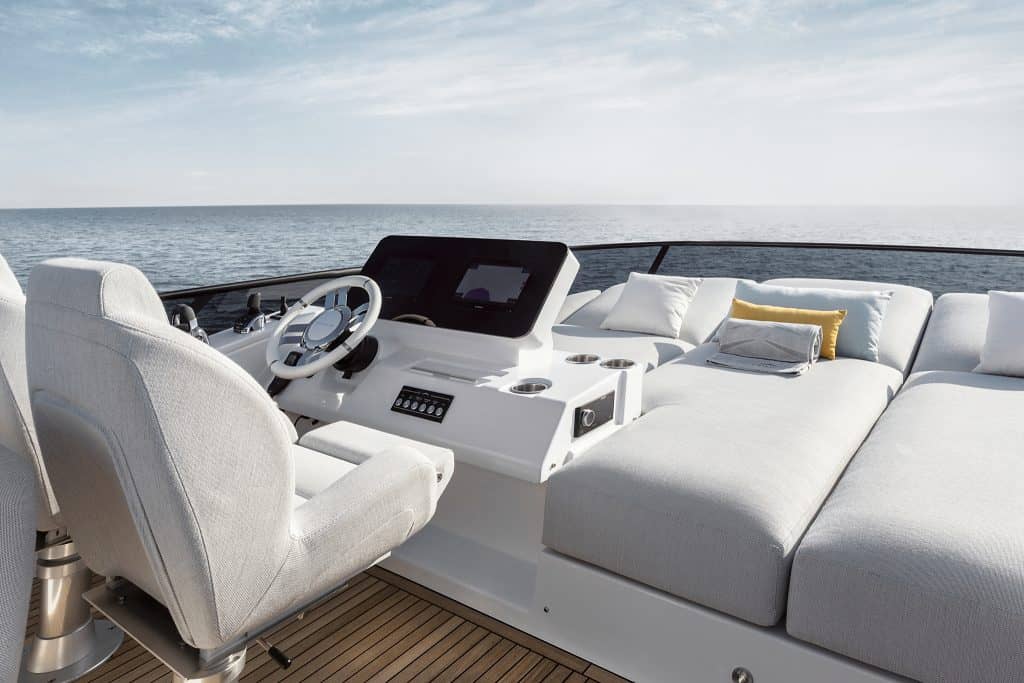

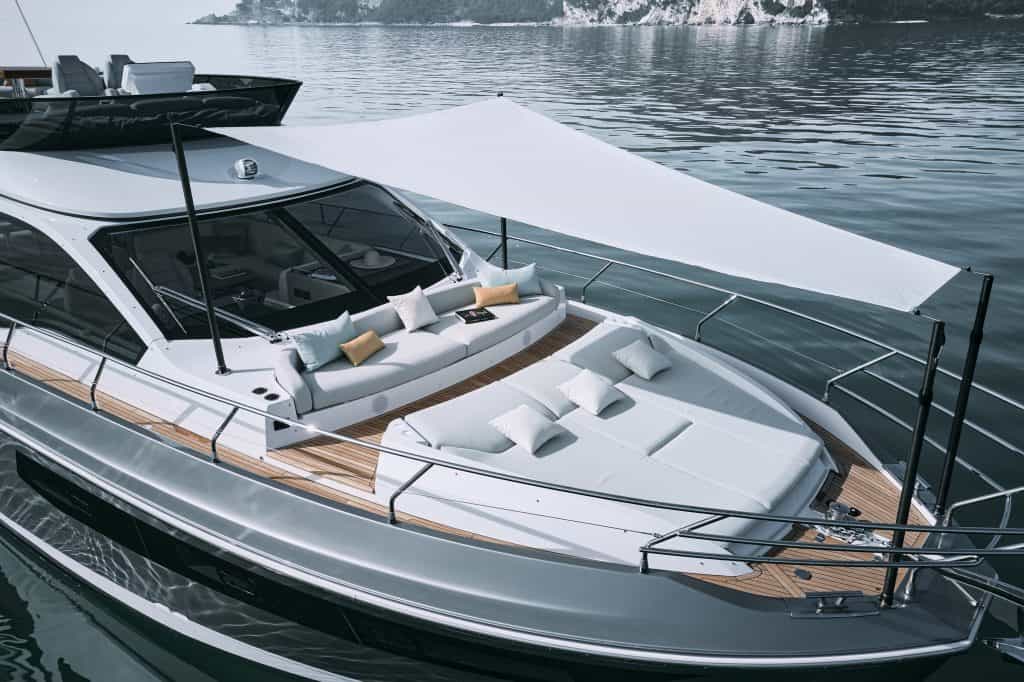

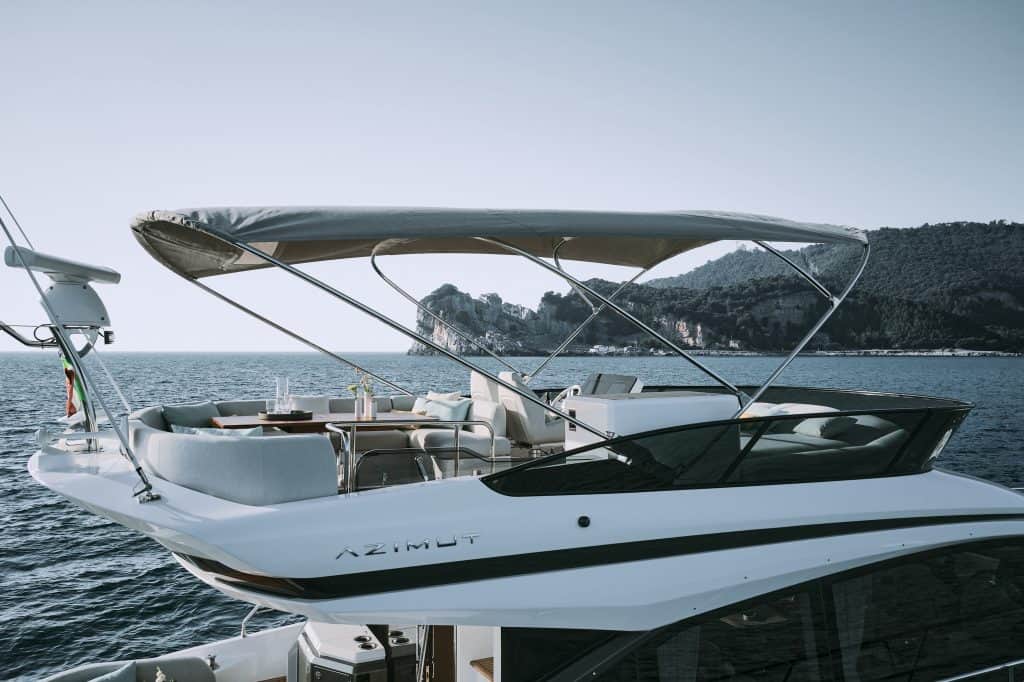

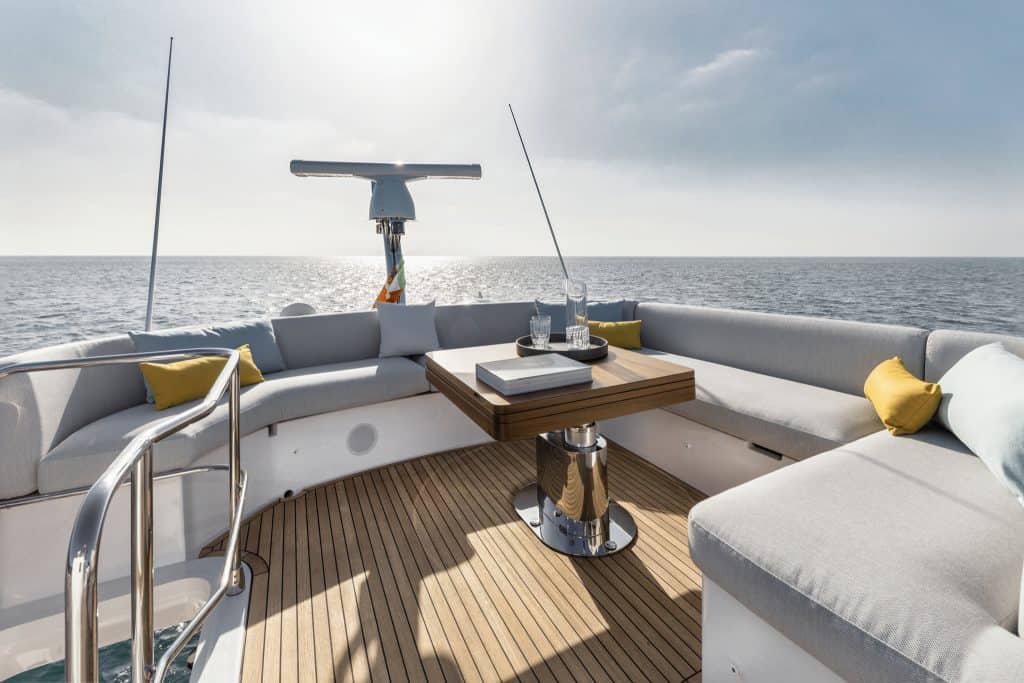

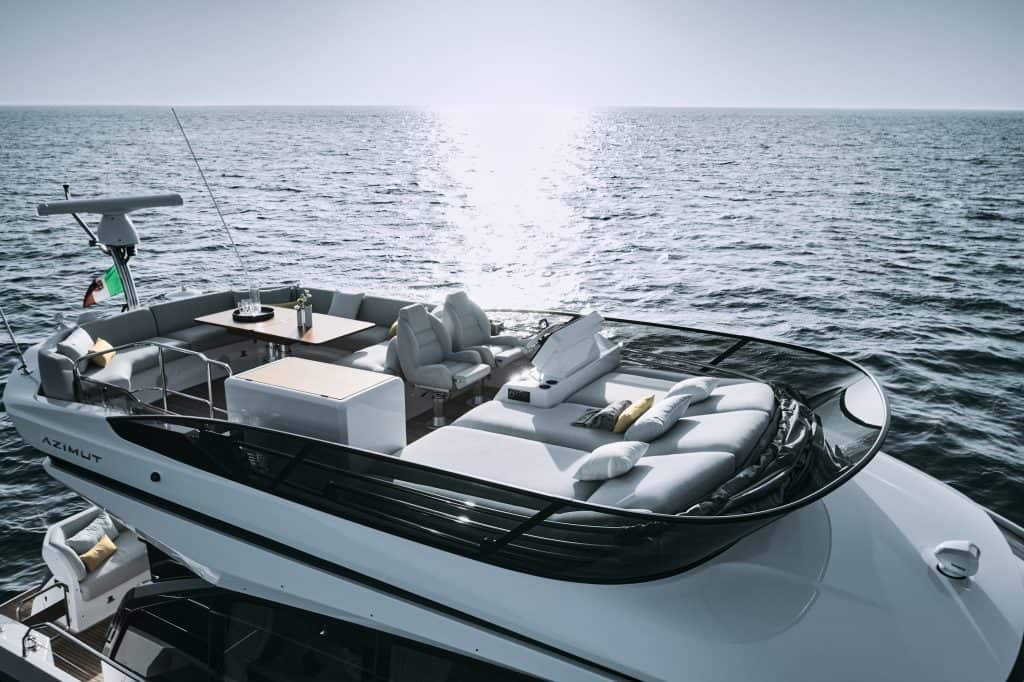

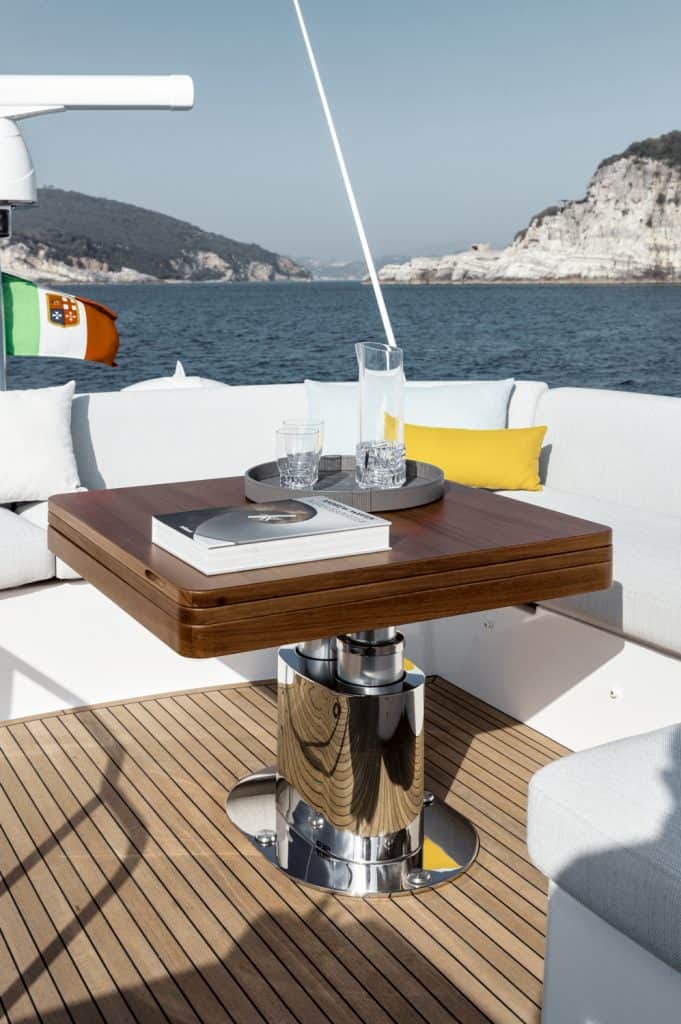

The exteriors are designed as a continuous terrace overlooking the infinite: from the vast flybridge, the true heart of life on board, to the cosy bow lounge, every inch is optimised for relaxation and conviviality. A design that not only enhances aesthetics but also amplifies the perception of space, offering direct and privileged contact with the marine environment.

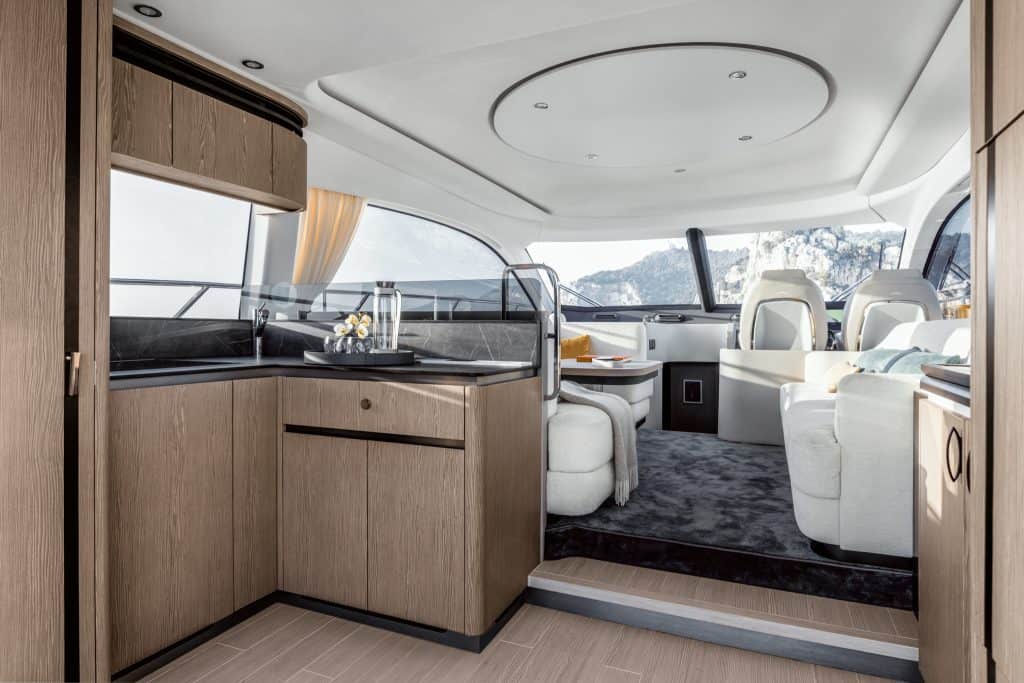

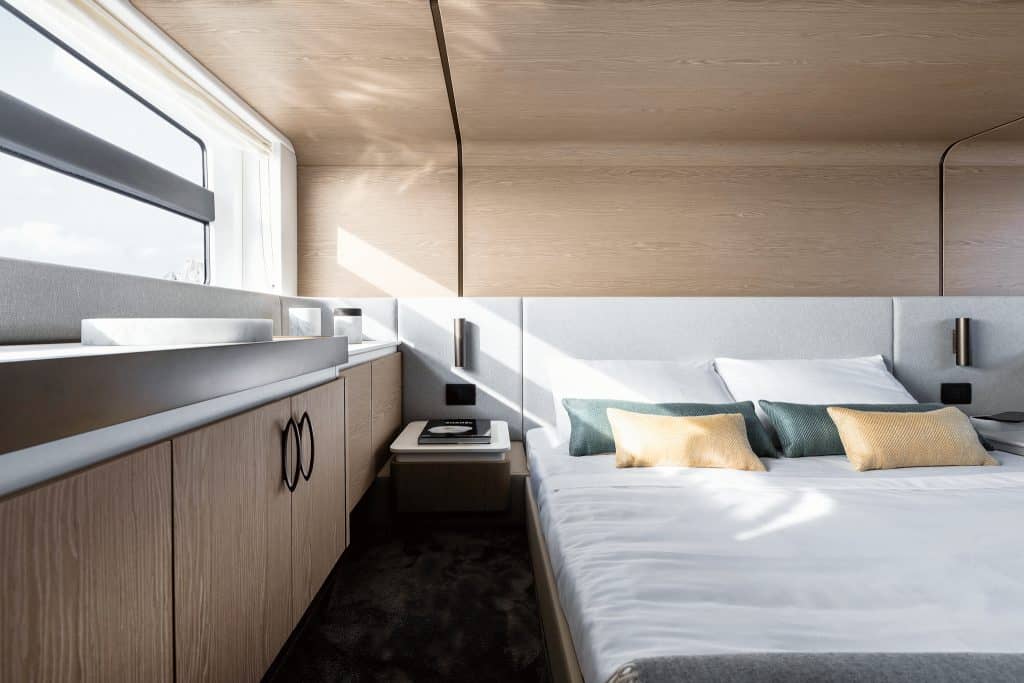

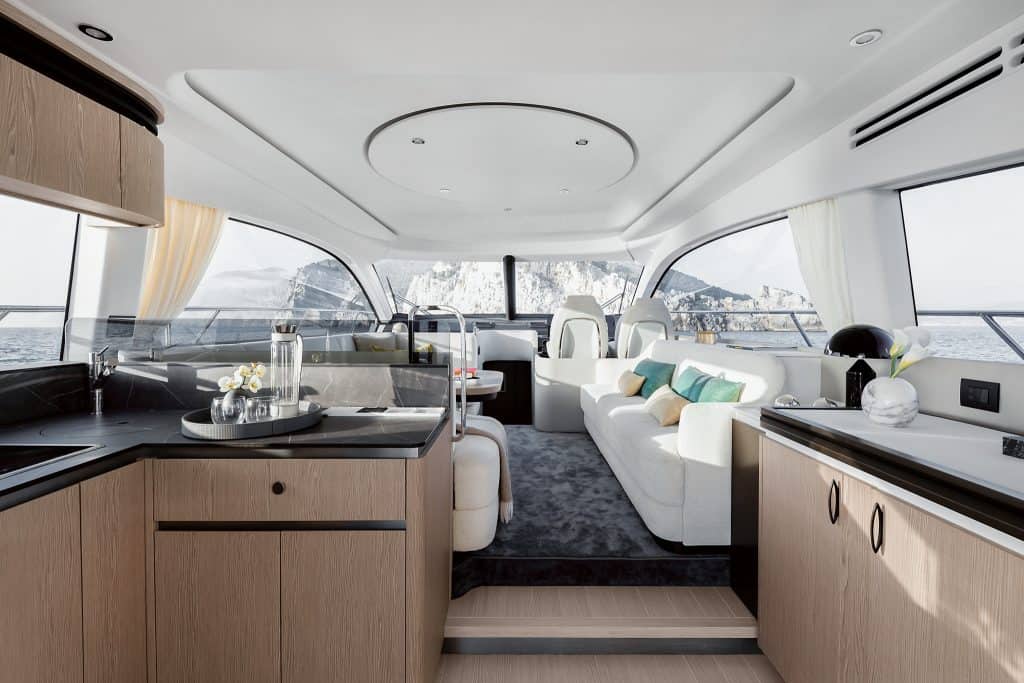

Upon crossing the threshold, the Azimut 53 Fly welcomes guests into an environment where natural light and refinement interact in perfect harmony. The large side windows eliminate any visual barriers, while the galley located at the entrance perfectly combines the interior and exterior. Below deck, the full-beam master suite surprises with its generous volumes and contemporary style, offering a luxurious retreat that transforms sailing into an experience of absolute domestic comfort.
Our advanced toolkit
Automated interceptors optimize the trim at every speed to maintain ideal hydrodynamics for performance and efficiency, at the same time negating any lateral imbalance due to sidewinds or weight distribution. With the pilot’s peace of mind assured, the driving experience is simpler and more enjoyable.

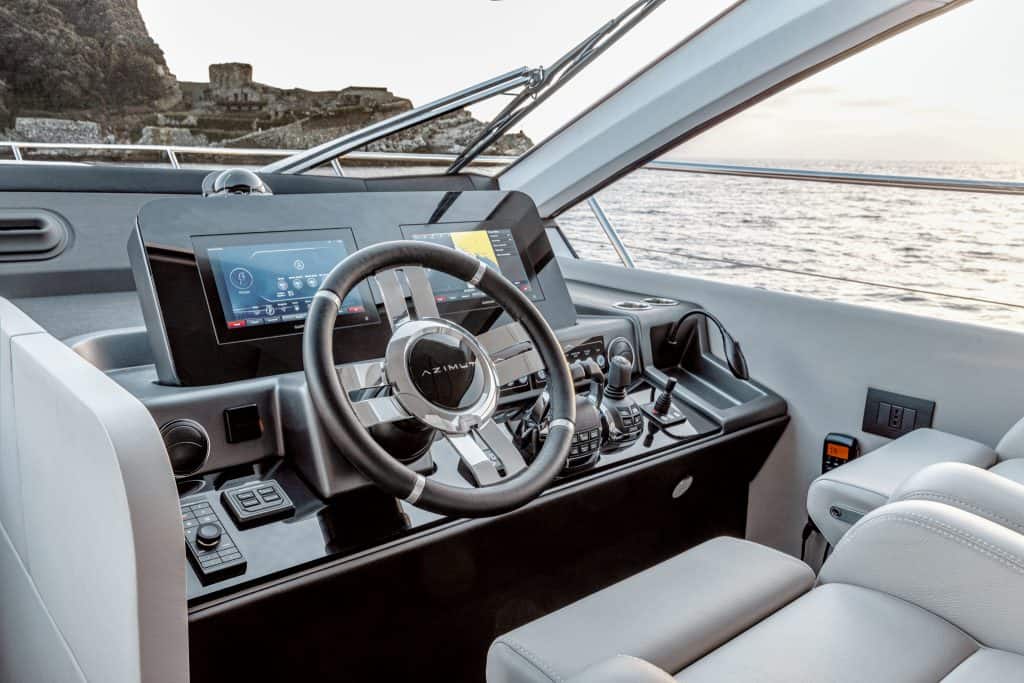

The Joystick acts as an analog for the yacht, offering intuitive, one-handed control in every situation. When the yacht is stopped, moving the Joystick forward or back, side to side, and twisting clockwise or counter-clockwise activates the engines to mimic that motion. It’s the easiest way to pull off precise maneuvers. When Joystick Driving is activated, the autopilot is immediately engaged. For easy course correction, the driver may briefly twist the Joystick for 1 degree in that direction or twist and hold for 10 degrees. The Autopilot keeps a forward course after the Joystick is released.
FLY 53
AT A GLANCE
-
Length overall (incl. pulpit)16,78 m (55’ 1’’)
-
Beam max4,95 m (16’ 3’’)
-
Draft (incl. props at full load)1,41 m (4’ 8”)
-
Displacement (at full load)30 t (66138 lb)
-
Building materialGRP
-
Exterior designerAlberto Mancini
-
Interior designerAzimut Yachts
-
Hull designerAzimut R&D Department in collaboration with MICAD
-
BuilderAzimut Yachts
-
KeelPlaning, Deadrise 13.6° aft and 16.8° hull center
-
CertificationsCE B; NMMA
-

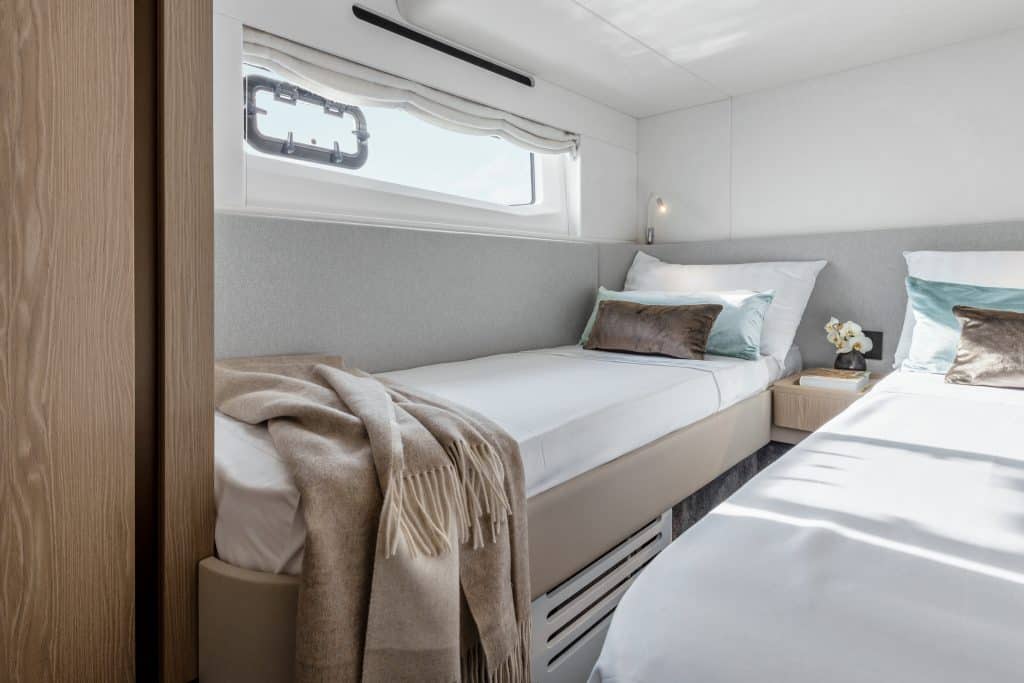

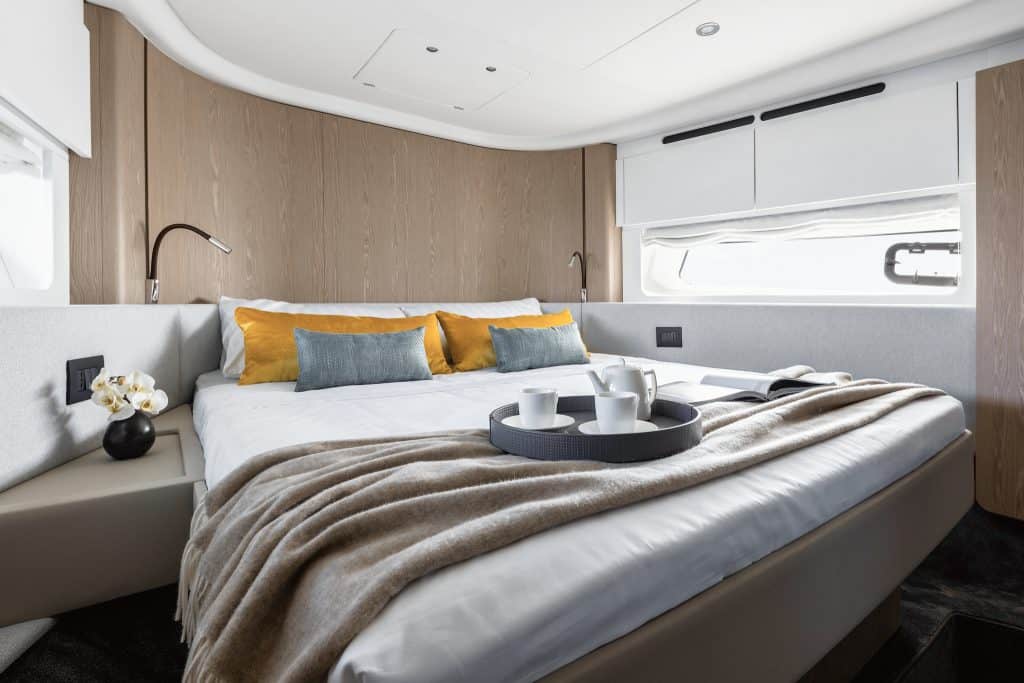

Cabins3 + 1 crew
-
Berths6 + 1 crew
-

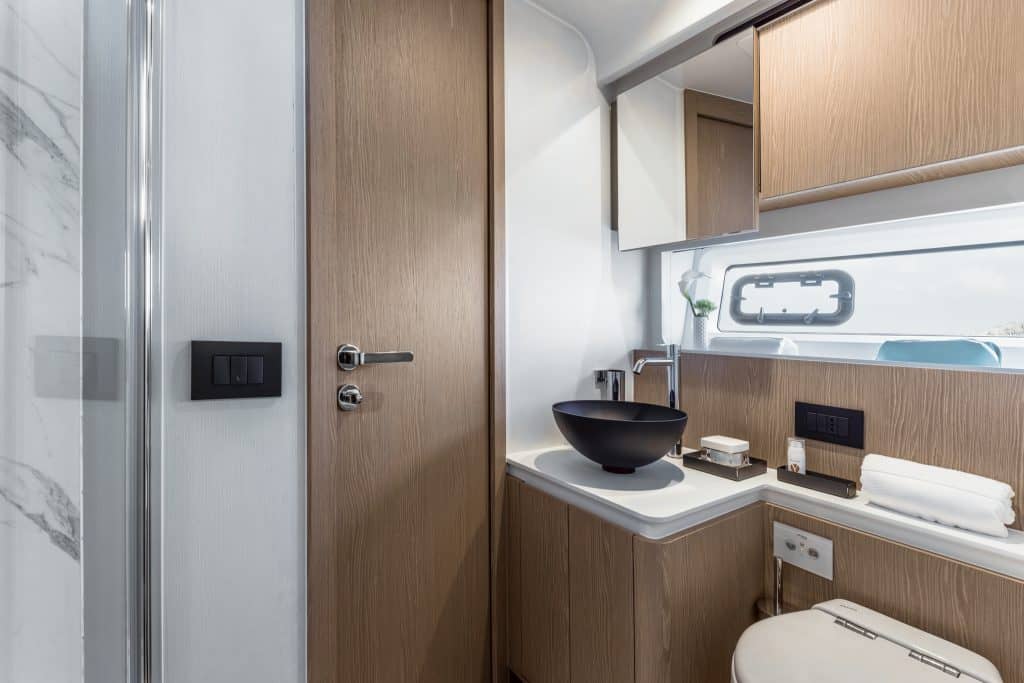

Head compartments2 + 1 crew
-
Engines2 x VOLVO PENTA IPS 950 D11 725 hp
-
Maximum speed (test load)up to 31 kn
-
Cruising speed (performance test mass)up to 26 kn
-
SLOW CRUISE15,1 kn: 7,7 l/nm, RANGE: 281 nm
-
FAST CRUISE26 kn: 7,8 l/nm, RANGE: 279 nm
-
Fuel capacity2400 l (634 US Gal)
-
Water capacity590 l (156 US Gal)
